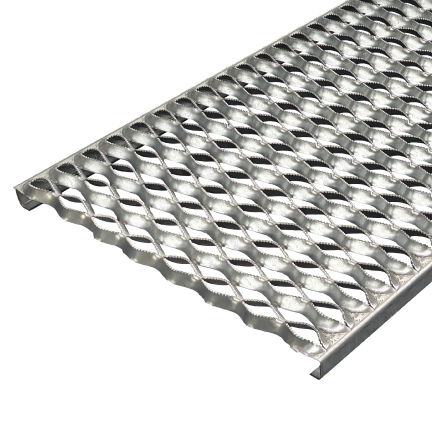

Heavy Duty Diamond-Grip® Channel is a one-piece metal plank grating manufactured by a cold forming process in the shape of a channel. The web of the channel is the walking surface and has rough, serrated edges around diamond-shaped openings.
The heavy-gauge metal construction (11, 10, and 9 GA) allows for larger spans and fewer supports.
FEATURES
- Available in 11, 10, and 9 gauge
- 10′ or 12′ lengths
- Serrated edges around diamond-shaped openings provide slip resistance under slippery conditions such as snow, ice, grease, oil, etc.
- One-piece metal construction.
- Long life span requiring little maintenance.
- Simple and economical installation, as planks are self-framing.
- Adaptable to cost-effective custom fabrication.
- Can be easily formed in standard channels or custom shapes.
CHANNEL DIMENSIONS
MATERIALS
Heavy Duty Diamond Grip Channel
| Diamond Width | Channel Width “A” | Diamond to Outside “B” |
|---|---|---|
| 2 | 9-1/4" | 1/2" |
| 3 | 13-3/4" | 1/2" |
| 5 | 23-1/4" | 3/4" |
| 6 | 27-3/4" | 3/4" |
| 8 | 36" | 3/8" |
PRODUCT MATERIAL OPTIONS
- ASTM A653, G-90 (Z-275) Pre-galvanized 11, 10, and 9 GA steel.
- ASTM A1011, HRP&O 11, 10, and 9 GA steel.

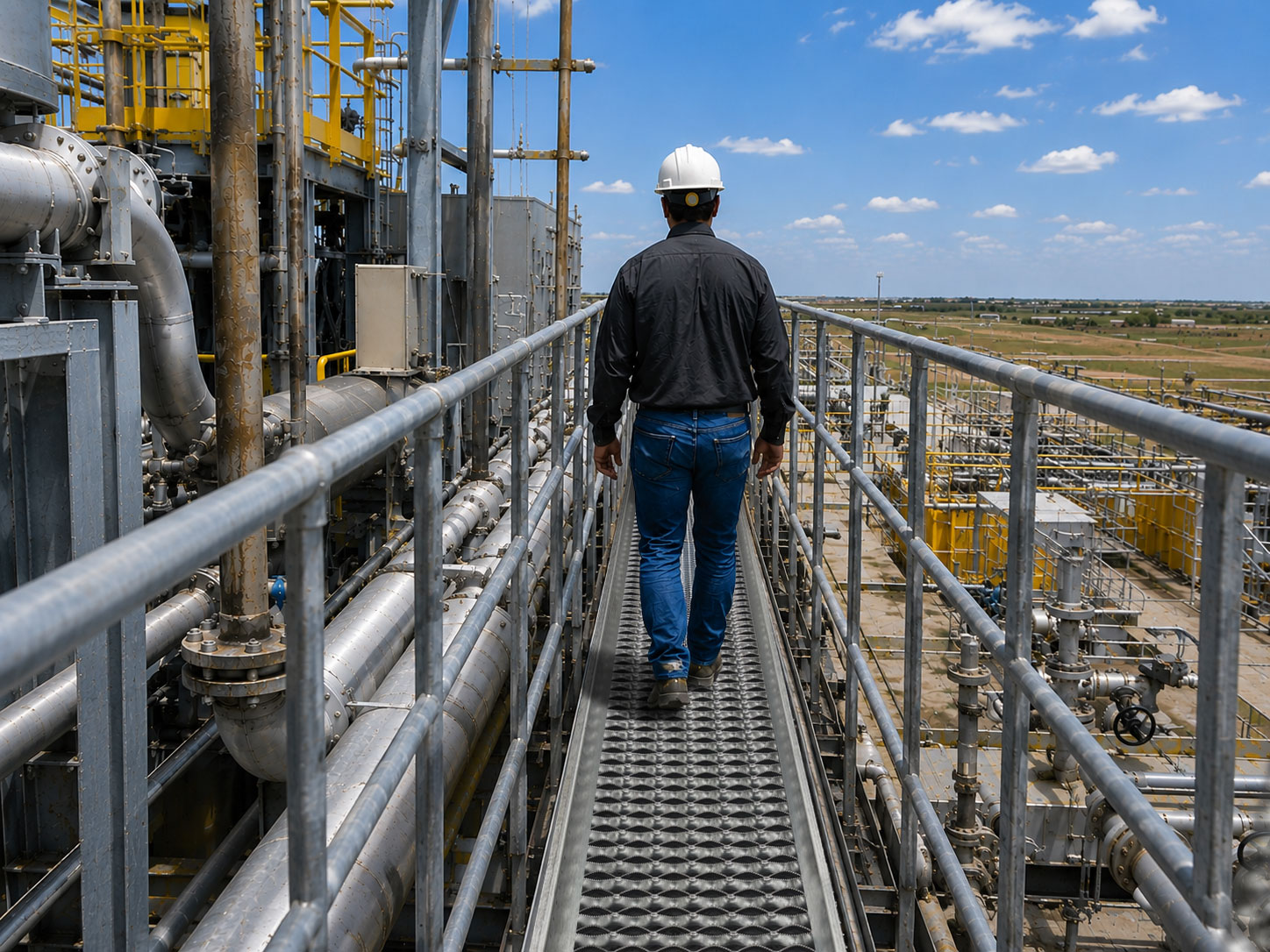

DIAMOND GRIP WALKWAY
Diamond-Grip® Channel is a one-piece metal plank grating manufactured by a cold forming process in the shape of a channel. The web of the channel is the walking surface and has rough serrated edges around diamond-shaped openings.
FEATURES
MATERIALS
- Available in 11, 10, and 9 gauge (standard duty diamond grip is available in 14, and 12 gauge)
- 10′ or 12′ lengths
- Serrated edges around diamond-shaped openings provide slip resistance on surfaces with snow, ice, grease, or oil.
- One-piece metal construction, complete with a full-height toe board on each side of the walking surface.
- Lightweight design provides high strength-to-weight ratio.
- Long lifespan requiring little maintenance.
- Simple and economical installation as walkways are self-framing.
- Adaptable to cost-effective custom fabrication.
- ASTM A653, G-90 (Z-275) pre-galvanized 11, 10, and 9 GA steel.
- ASTM A1011, HRP&O 11, 10, and 9 GA steel.

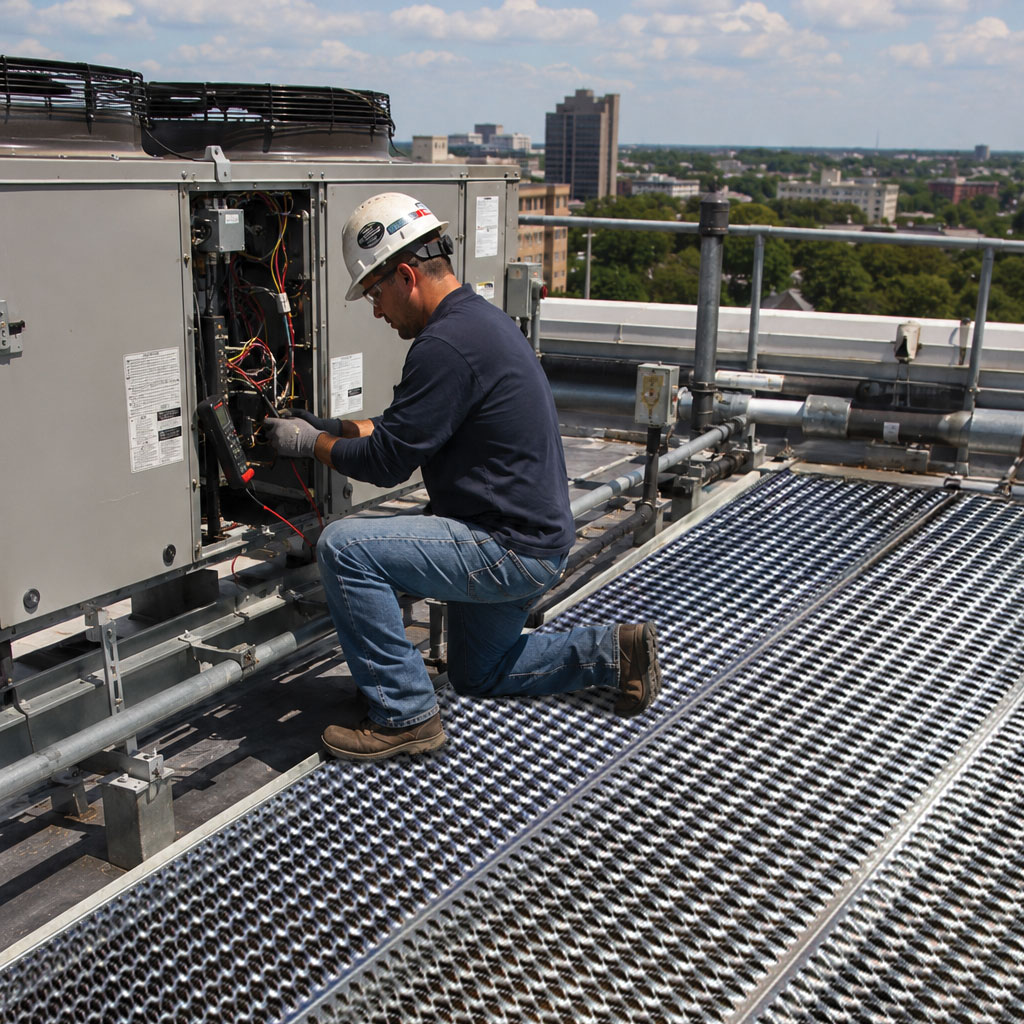

ROOF GRIP® ROOFTOP WALKWAY SYSTEM
Safety-Grip and Diamond-Grip Planks are fastened together and to sleepers either metal or pressure treated wood. Reference specific product pages for Material Options. AMICO ROOF-GRIP Walkway System allows for a safe, even and reliable walking surface while protecting roofs from damage by maintenance workers.
Diamond-Grip® Channel is a one-piece metal plank grating with rough diamond shaped.
36-inch wide Roof-Grip® on 2-in x 8-in pressure treated wood sleepers.
Safety-Grip® Channel is a one-piece metal plank grating with large debossed holes, surrounded by smaller embossed traction buttons.
24-inch wide RoofGrip® on metal sleepers.
