Channel is a one-piece metal plank grating manufactured by a cold forming process in the shape of a channel. The web of the channel is the walking surface and has large debossed holes, surrounded by smaller embossed traction buttons.
FEATURES
-
- Embossed traction buttons provide superior slip resistance in all directions and in all weather conditions.
- Large debossed holes provide maximum drainage of debris and allow up to 50% free air opening depending on channel width.
- Self-cleaning due to resilience of walking surface.
- One-piece metal construction.
- Lightweight design provides high strength-to-weight ratio.
- Long lifespan requiring little maintenance.
- Simple and economical installation as planks are self-framing.
- Adaptable to cost-effective custom fabrication.
- Can be easily formed in standard channel or custom shapes.

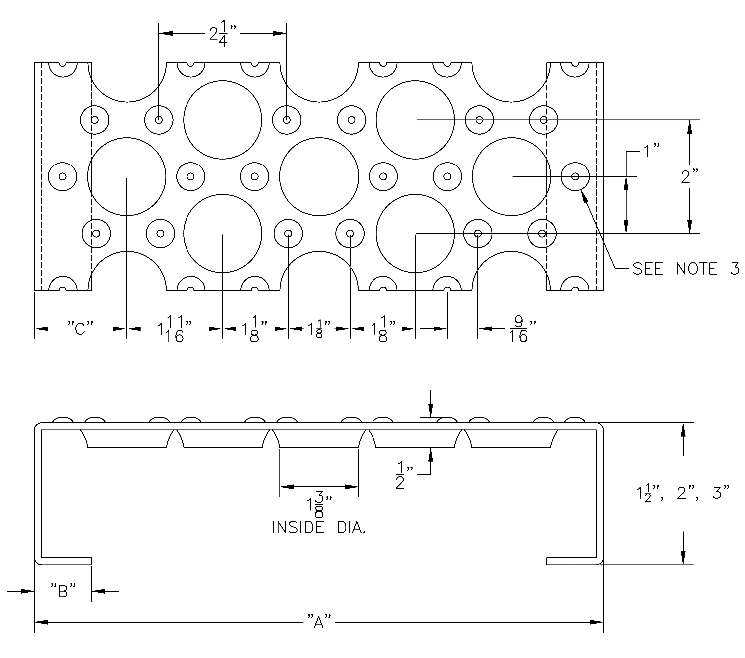

CHANNEL WIDTHS
Channel Width “A” | Return Flange “B” | CL Hole Channel Edge “C” |
7/8" | 1 21/32" | |
1" | 1 13/16" | |
7/8" | 1 5/8" | |
1" | 1 25/32" | |
1" | 1 13/32" | |
1-1/8" | 1 7/8" | |
1-1/18" | 2 11/32" |
MATERIALS
Grating shall be “Safety-Grip® Channel,” manufactured from (see ‘Material Options’ below) and complete with a (1-1/2”, 2”, 3”) side channel depth, by AMICO.
PRODUCT MATERIAL OPTIONS
-
- ASTM A653, G-90 (Z-275) Pre-galvanized 13 or 11GA steel.
- ASTM A1011, HRP&O 13 or 11GA steel.
- ASTM 209, 5052H32 Aluminum .125” thick (up to 18” width).
- ASTM A240, Type 316L 2B Stainless Steel 14GA (up to 11-3/4” width).
SAFETY GRIP WALKWAY

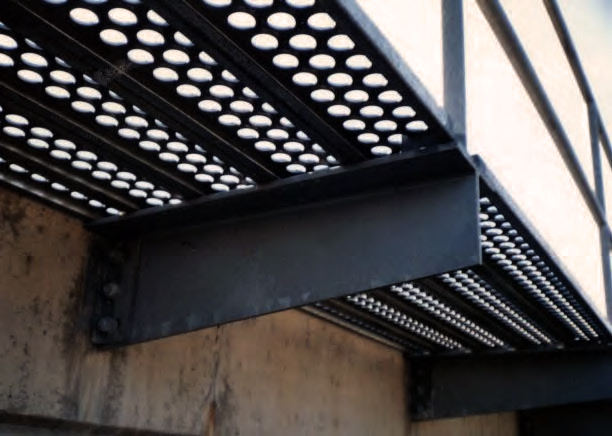

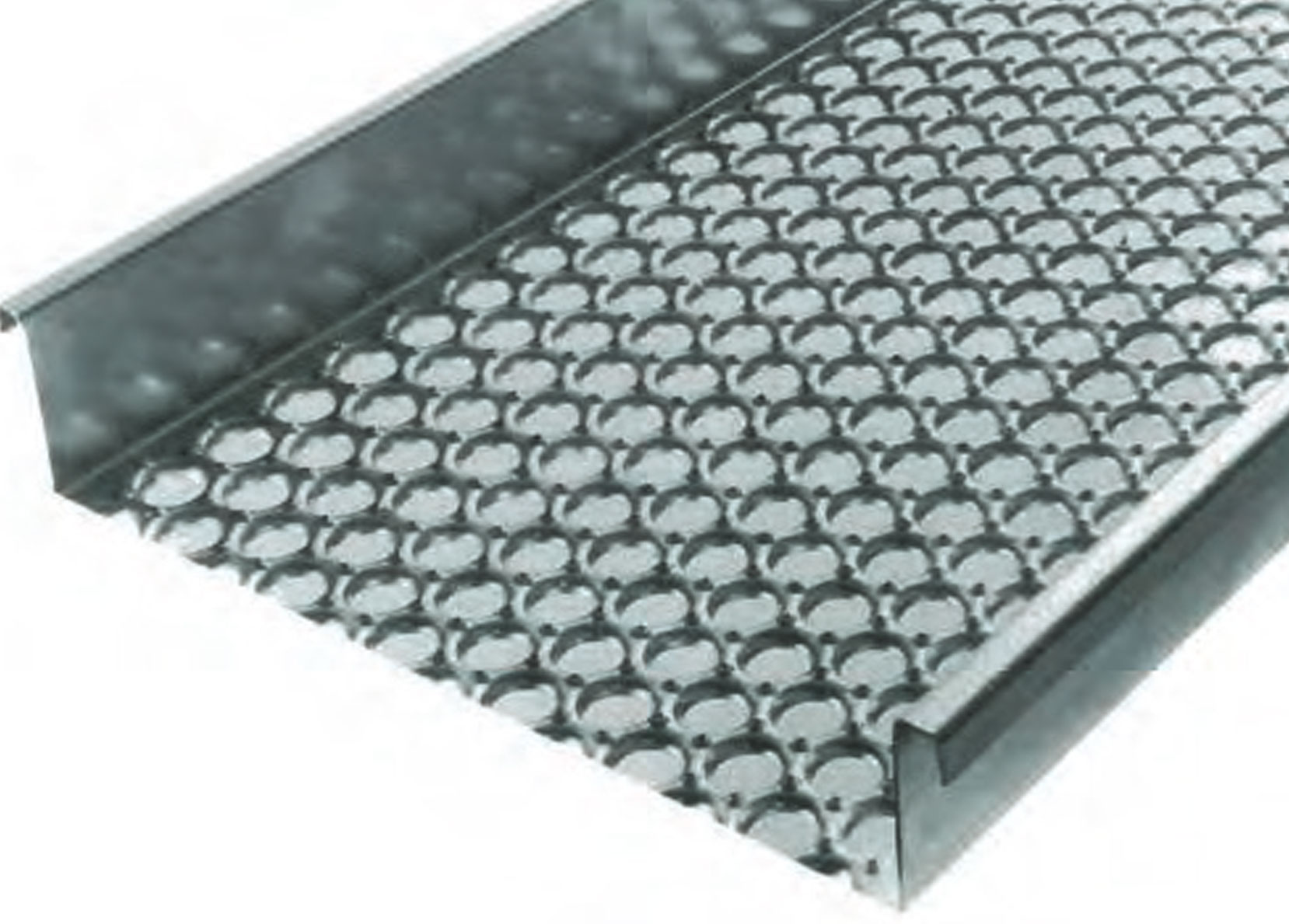

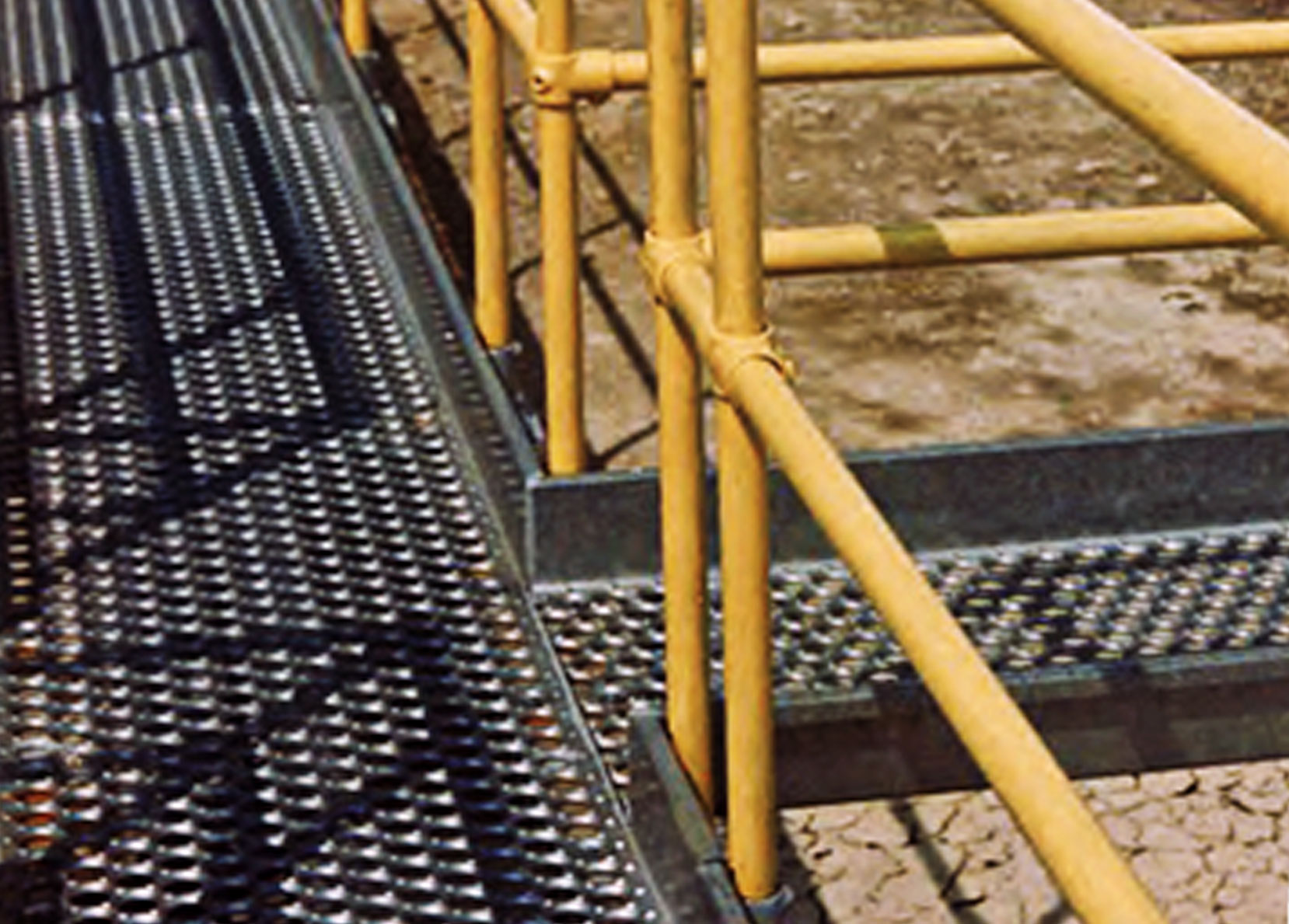

Safety-Grip® Walkway is a one-piece metal plank grating manufactured by a cold forming process in the shape of an inverted channel. The web of the channel is the walking surface and has large debossed holes, surrounded by smaller embossed traction buttons. The extended flanges support the load and provide a built-in kickplate (toeboard.)
FEATURES
-
- Embossed traction buttons provide superior slip resistance in all directions and in all weather conditions.
- Large debossed holes provide maximum drainage of debris and allow up to 50% free air opening depending on channel width.
- Self-cleaning due to resilience of walking surface.
- One-piece metal construction complete with a full 5” toeboard height on each side of the walking surface.
- Lightweight design provides high strength-to-weight ratio.
- Long lifespan requiring little maintenance.
- Simple and economical installation as walkways are self-framing.
- Adaptable to cost-effective custom fabrication.
MATERIALS
Grating shall be “Safety-Grip® Walkway,” manufactured from (see ‘Material Options’ below) and complete with an integral 5” toeboard, by AMICO.
- ASTM A653, G-90 (Z-275) pre-galvanized 13 or 11GA steel.
- ASTM A1011, HRP&O 13 or 11GA steel.
ROOF GRIP® ROOFTOP WALKWAY SYSTEM
Safety-Grip and Diamond-Grip Planks are fastened together and to sleepers either metal or pressure treated wood. Reference specific product pages for Material Options. AMICO ROOF-GRIP Walkway System allows for a safe, even and reliable walking surface while protecting roofs from damage by maintenance workers.

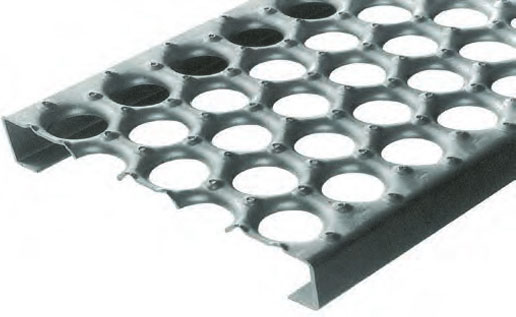

Safety-Grip® Channel is a one-piece metal plank grating with large debossed holes, surrounded by smaller embossed traction buttons.

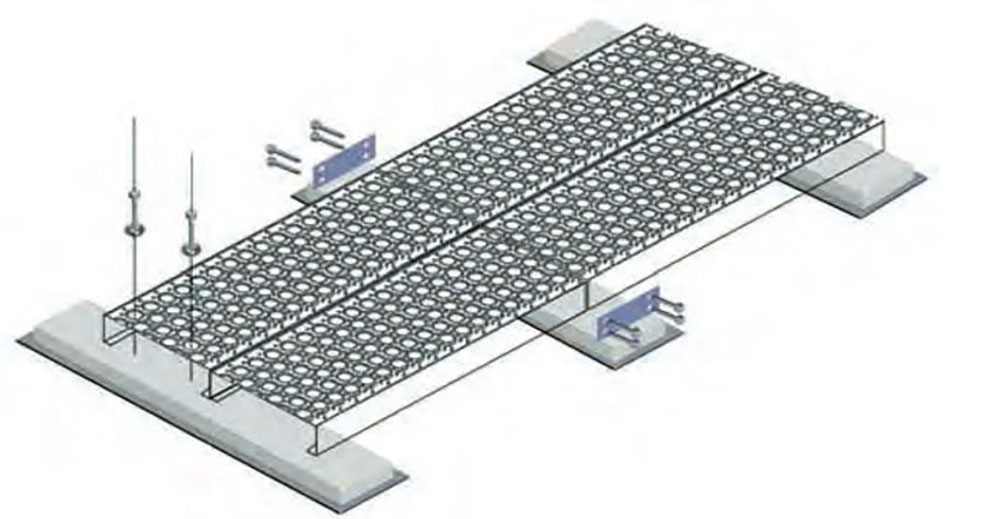

24-inch wide RoofGrip® on metal sleepers.

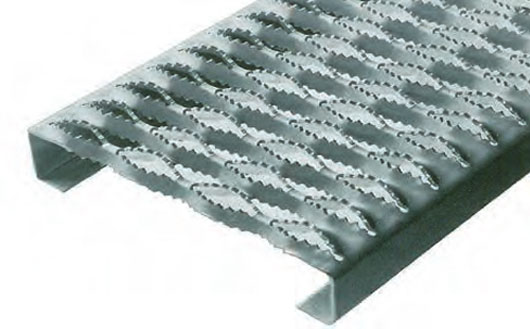

Diamond-Grip® Channel is a one-piece metal plank grating with rough diamond shaped.

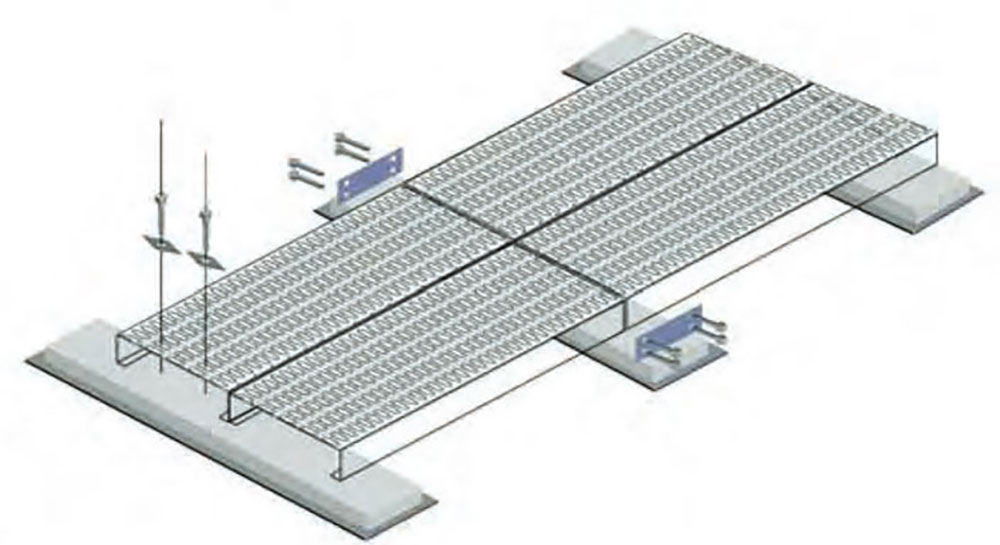

36-inch wide Roof-Grip® on 2-in x 8-in pressure treated wood sleepers.
