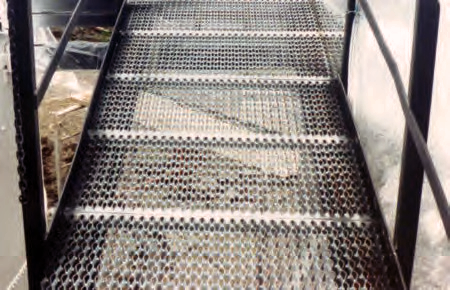

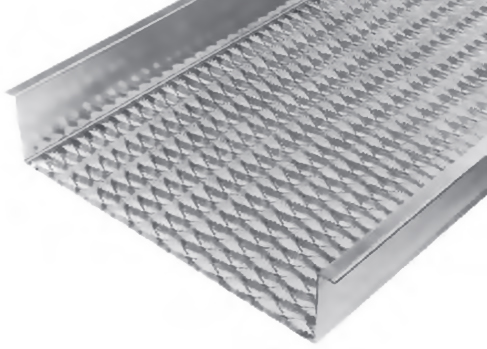

Diamond-Grip® Channel is a one-piece metal plank grating manufactured by a cold forming process in the shape of a channel. The web of the channel is the walking surface and has rough serrated edges around diamond-shaped openings.
FEATURES
- Serrated edges around diamond shaped openings provide slip resistance under slippery conditions such as snow, ice, grease, oil, etc.
- One-piece metal construction.
- Lightweight design provides high strength-to-weight ratio.
- Long life span requiring little maintenance.
- Simple and economical installation as planks are self-framing.
- Adaptable to cost-effective custom fabrication.
- Can be easily formed in standard channel or custom shapes.

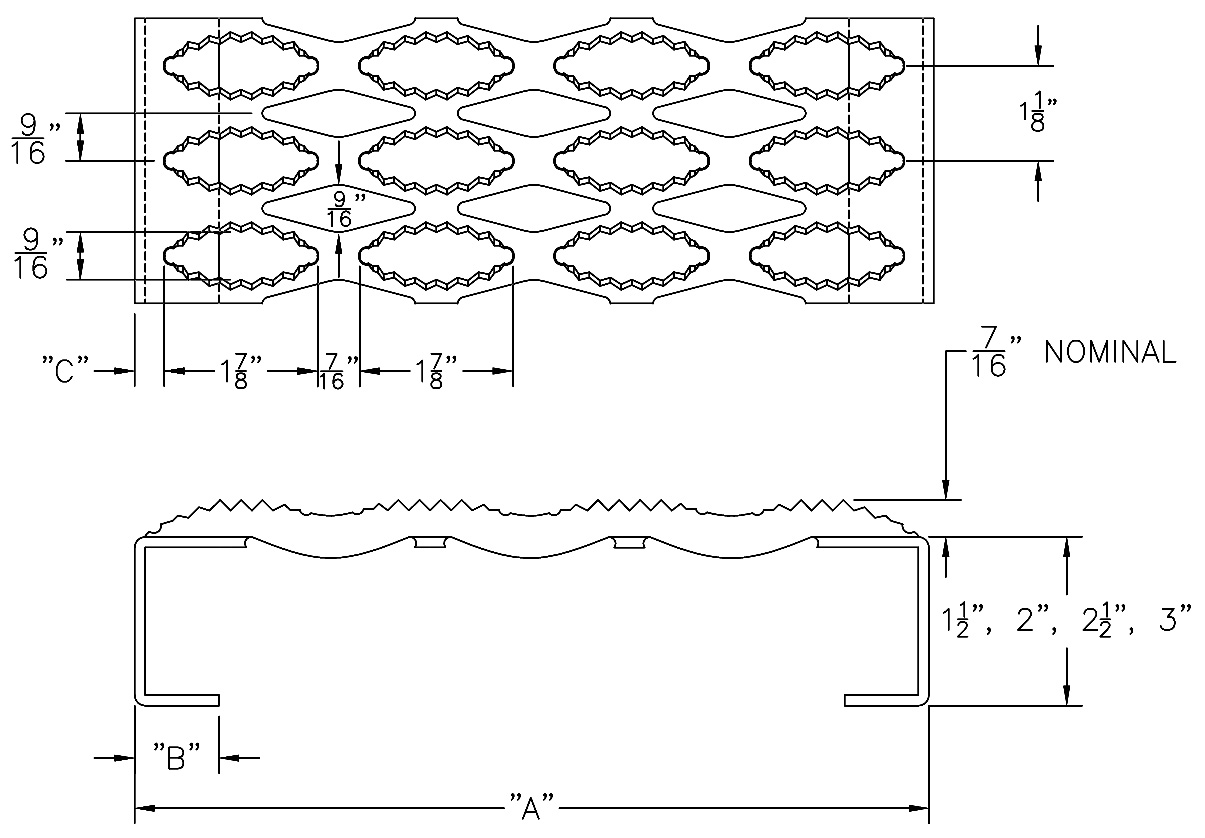

CHANNEL WIDTHS
MATERIALS
Channel Width “A” | Return Flange “B” | Diamond to Outside “C” |
7/8" | 5/16" | |
1" | 1/4" | |
7/8" | 1/4" | |
1" | 3/16" | |
1" | 3/16" | |
1-1/8" | 7/16" |
Grating shall be “Diamond-Grip® Channel,” manufactured from (see ‘Material Options’ below) and complete with a (1-1/2”, 2”, 2-1/2”, 3”) side channel depth, by AMICO.
PRODUCT MATERIAL OPTIONS
- ASTM A653, G-90 (Z-275) Pre-galvanized 14 and 12 GA steel.
- ASTM A1011, HRP&O 14 and 12 GA steel.
- ASTM 209, 5052-H32 Aluminum, .080” and .100” thick.
- ASTM A240, Type 316L 2B Stainless Steel 14 GA (up to 11-3/4” width).
- ASTM A240, Type 304L 2B Stainless Steel 16GA (up to 11-3/4” width).
FEATURES
MATERIALS
- Serrated edges around diamond-shaped openings provide slip resistance under slippery conditions such as snow, ice, grease, oil, etc.

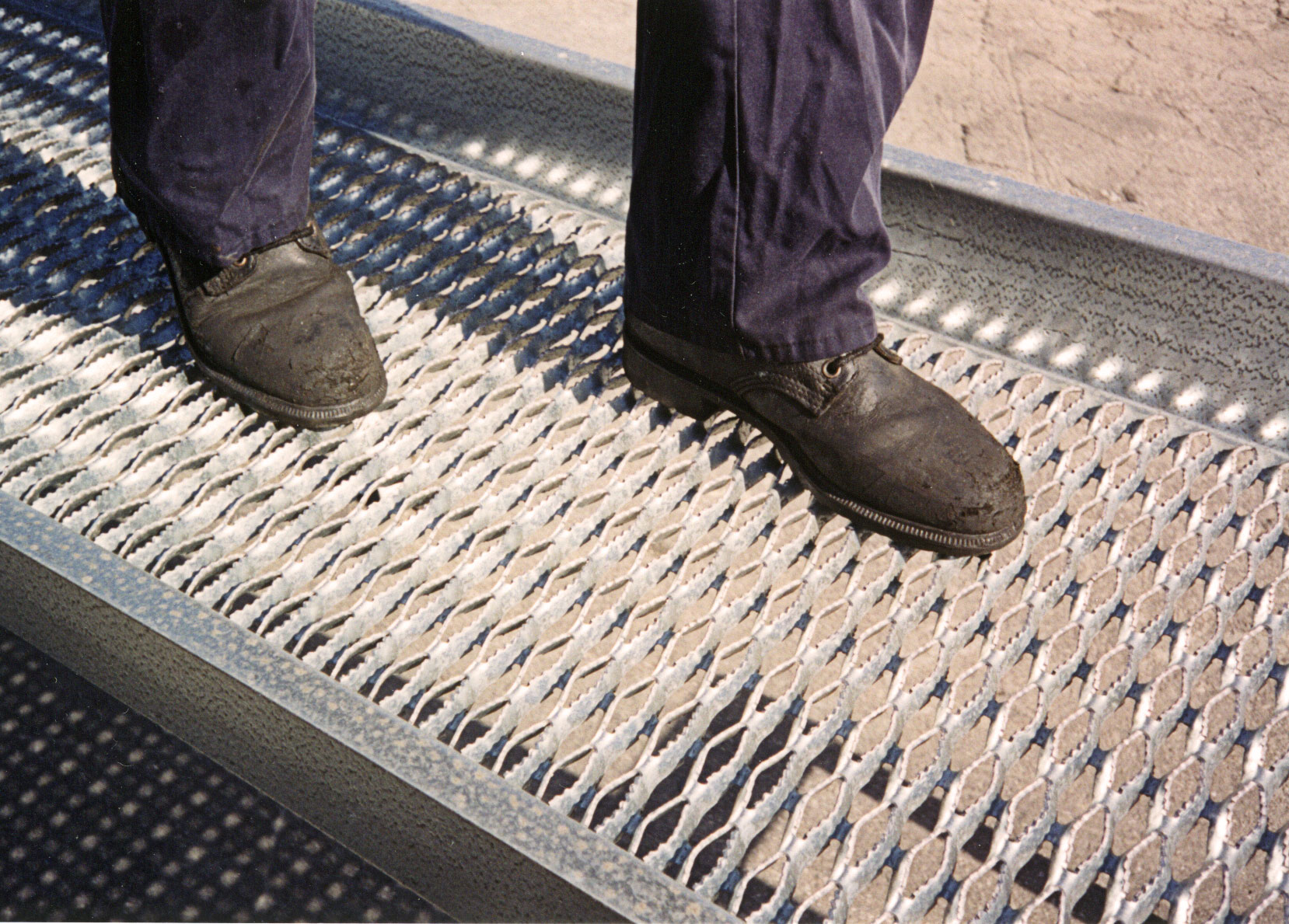

- One-piece metal construction complete with a full-height toeboard on each side of the walking surface.
- Lightweight design provides high strength-to-weight ratio.
- Long lifespan requiring little maintenance.
- Simple and economical installation as walkways are self-framing.
- Adaptable to cost-effective custom fabrication.

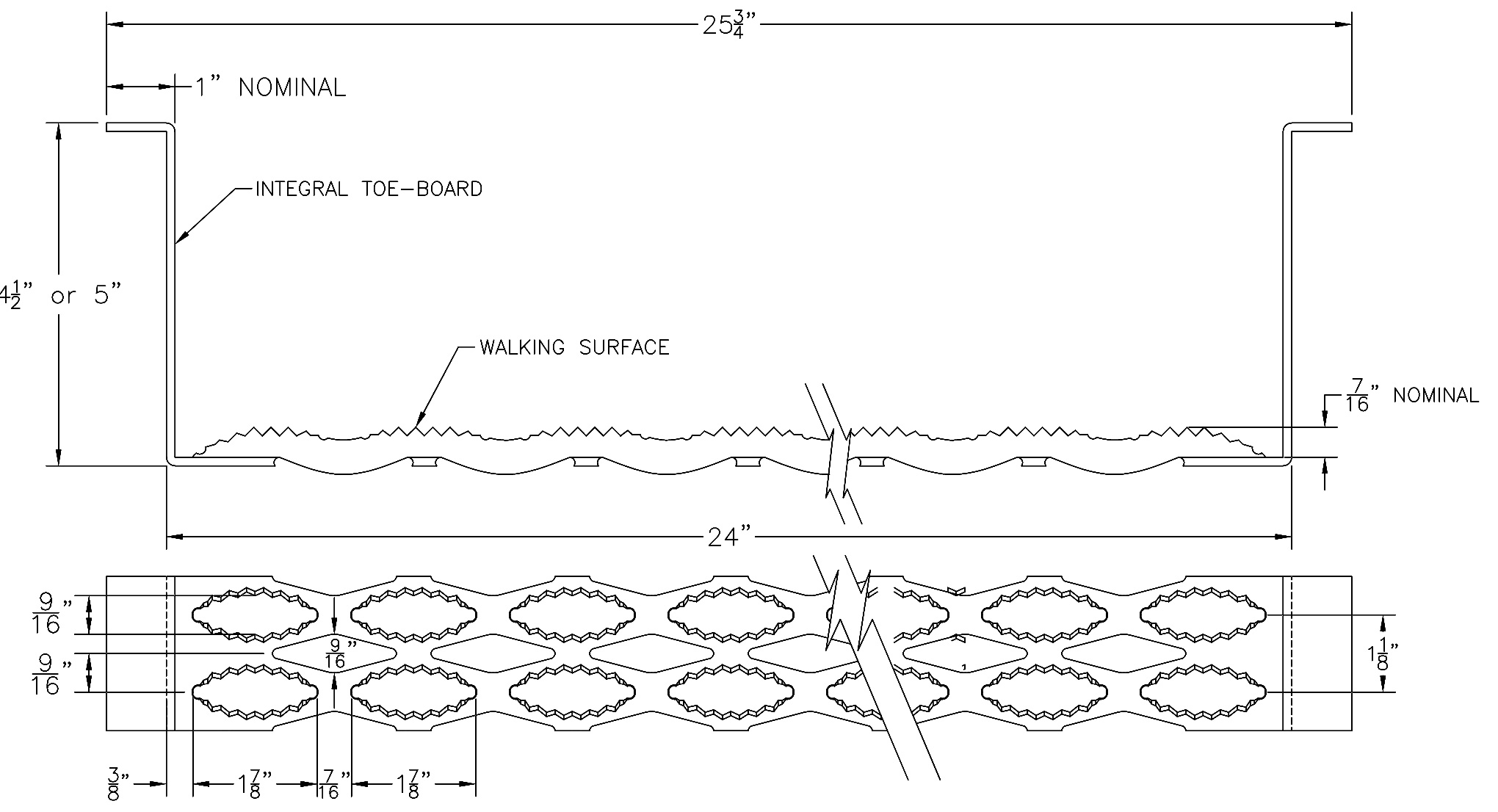

Grating shall be “Diamond-Grip® Walkway,” manufactured from (see ‘Material Options’ below) and complete with a (4-1/2”, 5”) integral toeboard, by AMICO.
- ASTM A653, G-90 (Z-275) pre-galvanized 14 and 12 GA steel.
- ASTM A1011, HRP&O 14 and 12 GA steel.
ROOF GRIP® ROOFTOP WALKWAY SYSTEM
Safety-Grip and Diamond-Grip Planks are fastened together and to sleepers either metal or pressure treated wood. Reference specific product pages for Material Options. AMICO ROOF-GRIP Walkway System allows for a safe, even and reliable walking surface while protecting roofs from damage by maintenance workers.
Diamond-Grip® Channel is a one-piece metal plank grating with rough diamond shaped.
36-inch wide Roof-Grip® on 2-in x 8-in pressure treated wood sleepers.
Safety-Grip® Channel is a one-piece metal plank grating with large debossed holes, surrounded by smaller embossed traction buttons.
24-inch wide RoofGrip® on metal sleepers.
