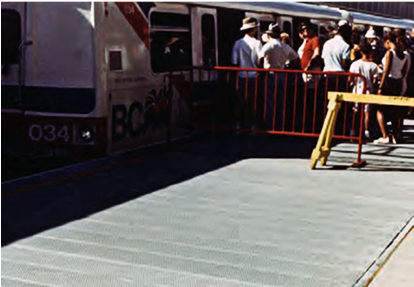

Safety-Tread® Channel is a one-piece plank grating manufactured by a cold forming process in the shape of a channel. The web of the channel is the walking surface which is covered with small perforated dimples.
FEATURES
-
- Perforated dimples provide superior slip resistance in all directions. Quantity of dimples under foot provides exceptional adhesive friction One-piece metal construction.
- Lightweight design provides high strength-to-weight ratio.
- Long effective lifespan requiring little maintenance.
- Can be easily formed in standard channel or custom shapes.
- Simple and economical installation as planks are self-framing.
- Adaptable to cost-effective custom fabrication.
- Low projections and closed area provide an acceptable walking surface for industrial as well as institutional applications (i.e., women in heels can walk comfortably and safely).
- Available in four dimpled patterns.
MATERIALS
Grating shall be “Safety-Tread® Channel” (Standard Patterns – full, square, star, “V” pattern) or Safety-Tread® Drainage Channel (Drainage Patterns – square, star pattern) manufactured by AMICO from:
STANDARD CHANNEL MATERIAL OPTIONS
- ASTM A1011, HRP&O, 13 or 11GA steel.
- ASTM A653, G-90 (Z-275) Pre-galvanized 13 or 11GA steel.
- ASTM 5052-H32 Aluminum, .125” thick.
- ASTM A240, Type 316L 2B Stainless Steel 14GA (“V” pattern only).
- ASTM A240, Type 304L Stainless Steel 16GA (“V” pattern only).
Safety Tread® Channel and Safety-Tread® Drainage Channel are manufactured in nominal 10’ and 12’ lengths. Other combinations or gauges, channel depths, and widths are available by special request.
DRAINAGE CHANNEL MATERIAL OPTIONS
- ASTM A1011, HRP&O, 13 or 11GA steel.
- ASTM A653, G-90 (Z-275) Pregalvanized 13GA steel.
- ASTM A209, 5052-H32 Aluminum, .125” thick.

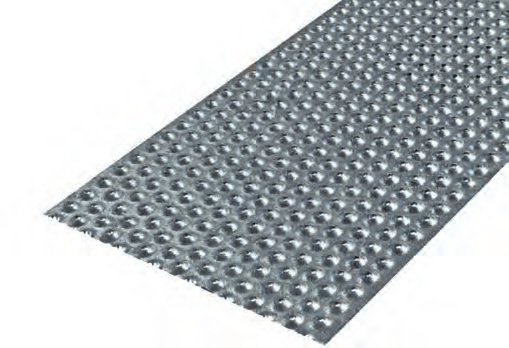

FEATURES
- Perforated dimples provide superior slip resistance in all directions and in all weather conditions. The quantity of dimples under foot provides exceptional adhesive friction.
- Long lifespan requiring little maintenance.
- Can be easily formed into custom shapes.
- Adaptable to a wide range of applications.
- Easily adaptable to cost-effective, custom fabrication.
- Low projections and closed area provide an acceptable walking surface for industrial as well as institutional and commercial applications (i.e., women in heels can walk comfortably and safely).
- Available in four dimpled patterns.
- Optional drainage flooring features smaller unembossed holes (location and size variable with dimple pattern) providing drainage for liquid which may pool on walking surface in wet environments.
MATERIALS
Grating shall be “Safety-Tread® Flooring” (Standard Patterns full, square, star, “V” pattern) or Safety-Tread® Drainage Flooring (Drainage Patterns square, star pattern) manufactured by AMICO from:
STANDARD FLOORING MATERIAL OPTIONS
- ASTM A1011, HRP&O, 16, 13 or 11GA steel.
- ASTM A653, G-90 (Z-275) Pre-galvanized 13GA steel.
- ASTM 5052-H32 Aluminum, .125” thick.
- ASTM A240, Type 316L, Stainless Steel 14GA (“V” pattern only).
- ASTM A240, Type 304L, Stainless Steel 16GA (“V” pattern only).
DRAINAGE FLOORING MATERIAL OPTIONS
- ASTM A1011, HRP&O, 11GA steel.
- ASTM A653, G-90 (Z-275) Pre-galvanized 13GA square pattern or 11GA star pattern.
- ASTM A209, 5052-H32 Aluminum, .125” thick.
Square Drainage
Star Drainage

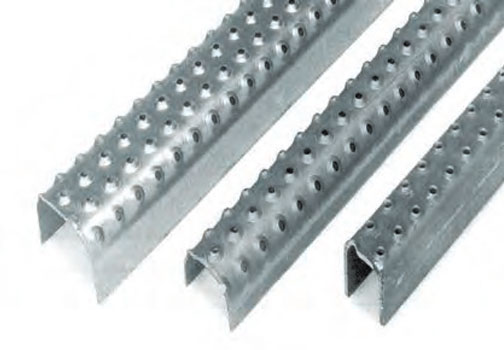

SAFETY TREAD LADDER RUNGS
Safety-Tread® Ladder Rungs are small channel-shaped sections; the web of the channel being the walking surface which is covered with small perforated dimples, produced by a cold forming process.
FEATURES
- Perforated dimples provide superior slip resistance in all directions and in all weather conditions. The quantity of dimples under foot provides exceptional adhesive friction.
- Long lifespan requiring little maintenance.
- Can be easily formed into custom shapes.
- Adaptable to a wide range of applications.
- Easily adaptable to cost-effective, custom fabrication.
- Low projections and closed area provide an acceptable walking surface for industrial as well as institutional and commercial applications (i.e., women in heels can walk comfortably and safely).
- Available in four dimpled patterns.
- Optional drainage flooring features smaller unembossed holes (location and size variable with dimple pattern) providing drainage for liquid which may pool on walking surface in wet environments.
1 1/4″ Wide (2 Hole)
1 5/8″ Wide (3 Hole)

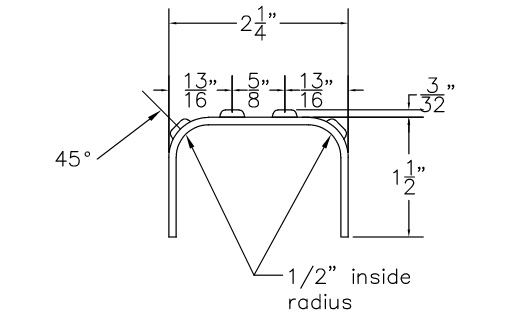

2 1/4″ Wide (4 Hole)
ROOF GRIP® ROOFTOP WALKWAY SYSTEM
Safety-Grip and Diamond-Grip Planks are fastened together and to sleepers either metal or pressure treated wood. Reference specific product pages for Material Options. AMICO ROOF-GRIP Walkway System allows for a safe, even and reliable walking surface while protecting roofs from damage by maintenance workers.
Safety-Grip® Channel is a one-piece metal plank grating with large debossed holes, surrounded by smaller embossed traction buttons.
24-inch wide RoofGrip® on metal sleepers.
Diamond-Grip® Channel is a one-piece metal plank grating with rough diamond shaped.
36-inch wide Roof-Grip® on 2-in x 8-in pressure treated wood sleepers.
